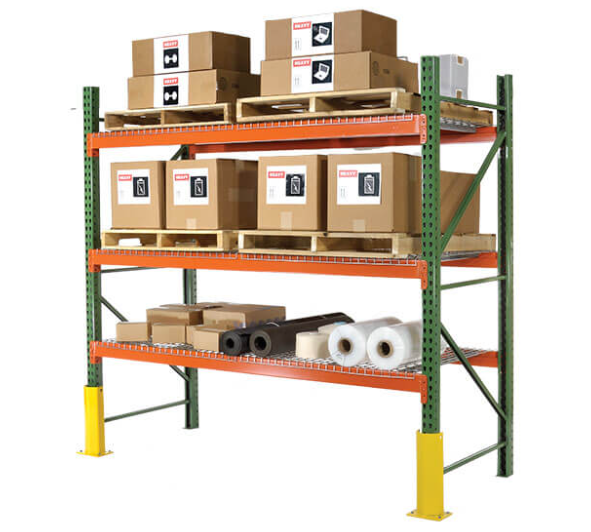

Pallet Racking

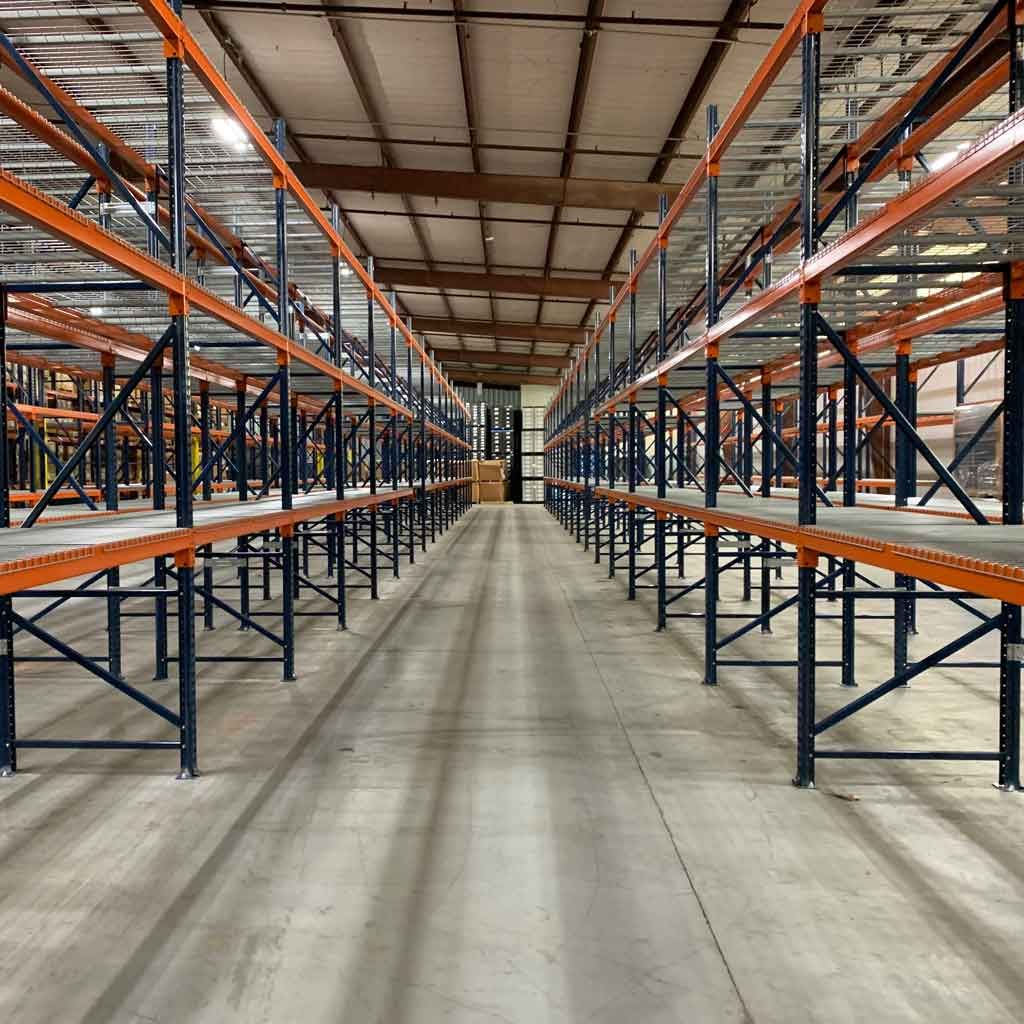

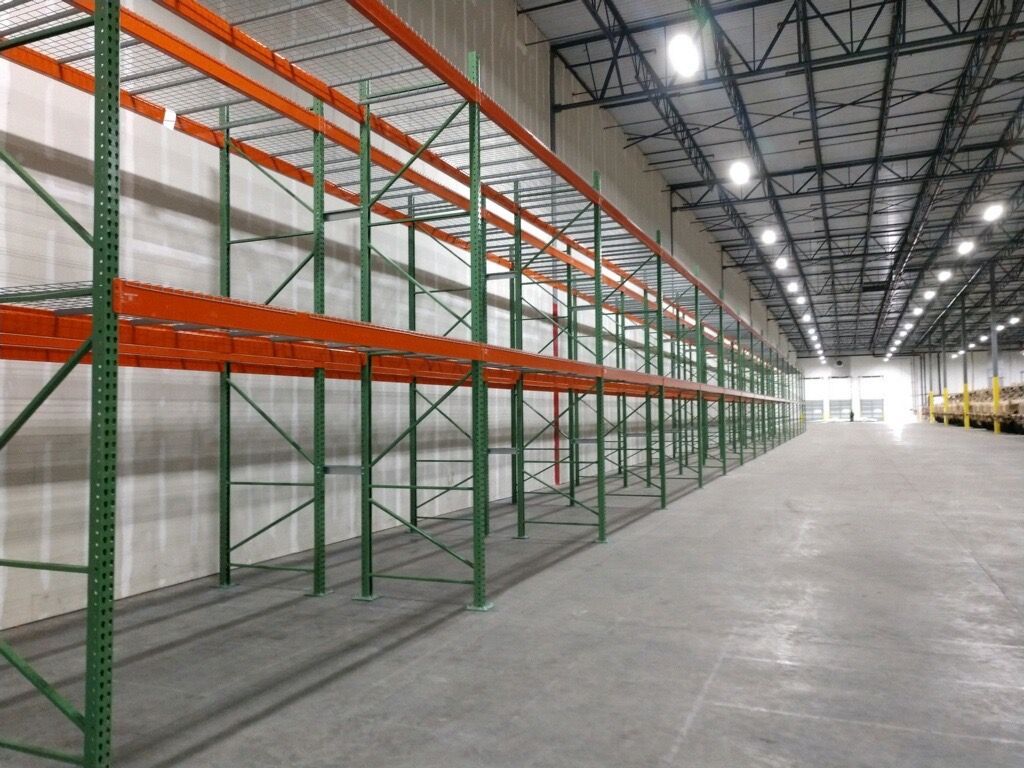

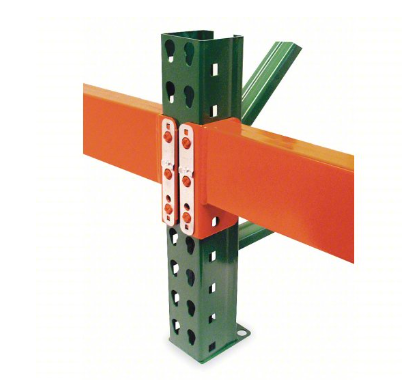

Teardrop Style Racking

• Industry standard design: Beam attachments have two adjacent teardrop punches on 2” centers (industry standard), so beams are compatible with most other pallet rack systems. Teardrop style punches are found in 93% of rack systems.
• Increased safety: Bowlock safety clip securely locks beams in place.
• Scalable: Made with high-strength steel, our uprights can be built up to 46 feet without splicing.
• Made in the U.S. with 100% U.S. Steel
• Available now: We guarantee our quick-ship items ship within 48 hours.
• Color options: Standard colors are green uprights and orange beams.

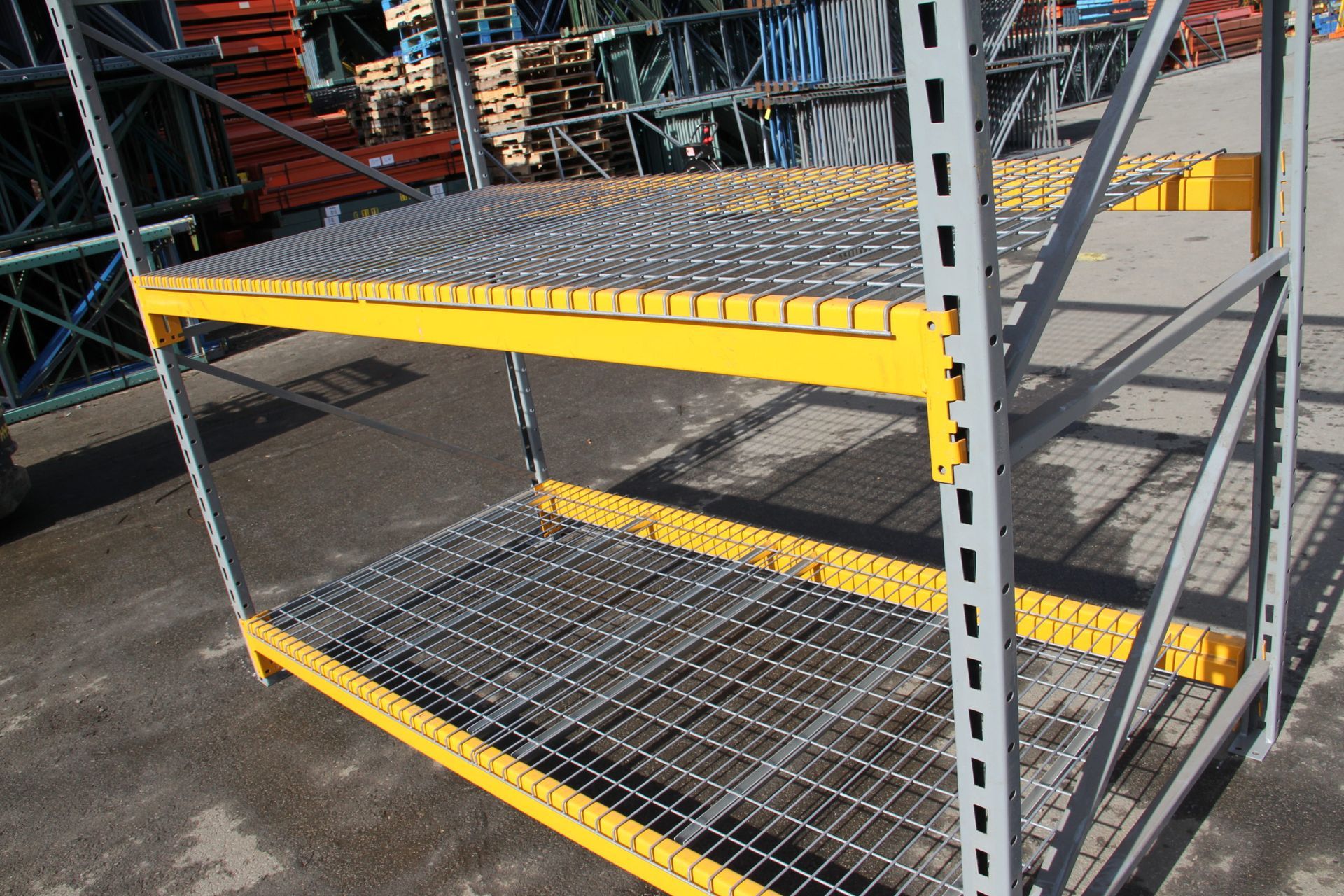

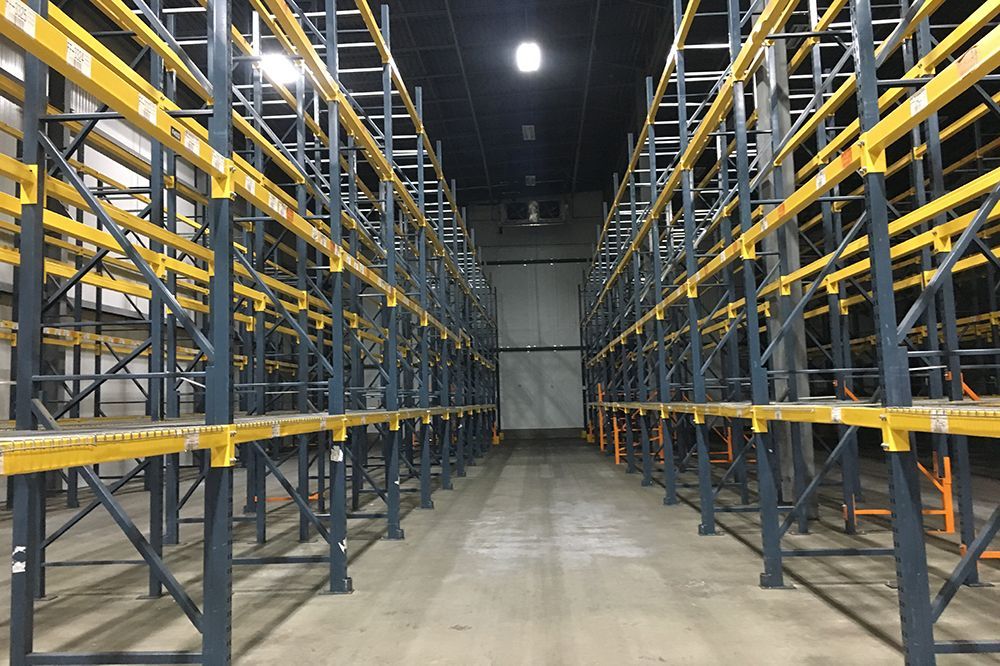

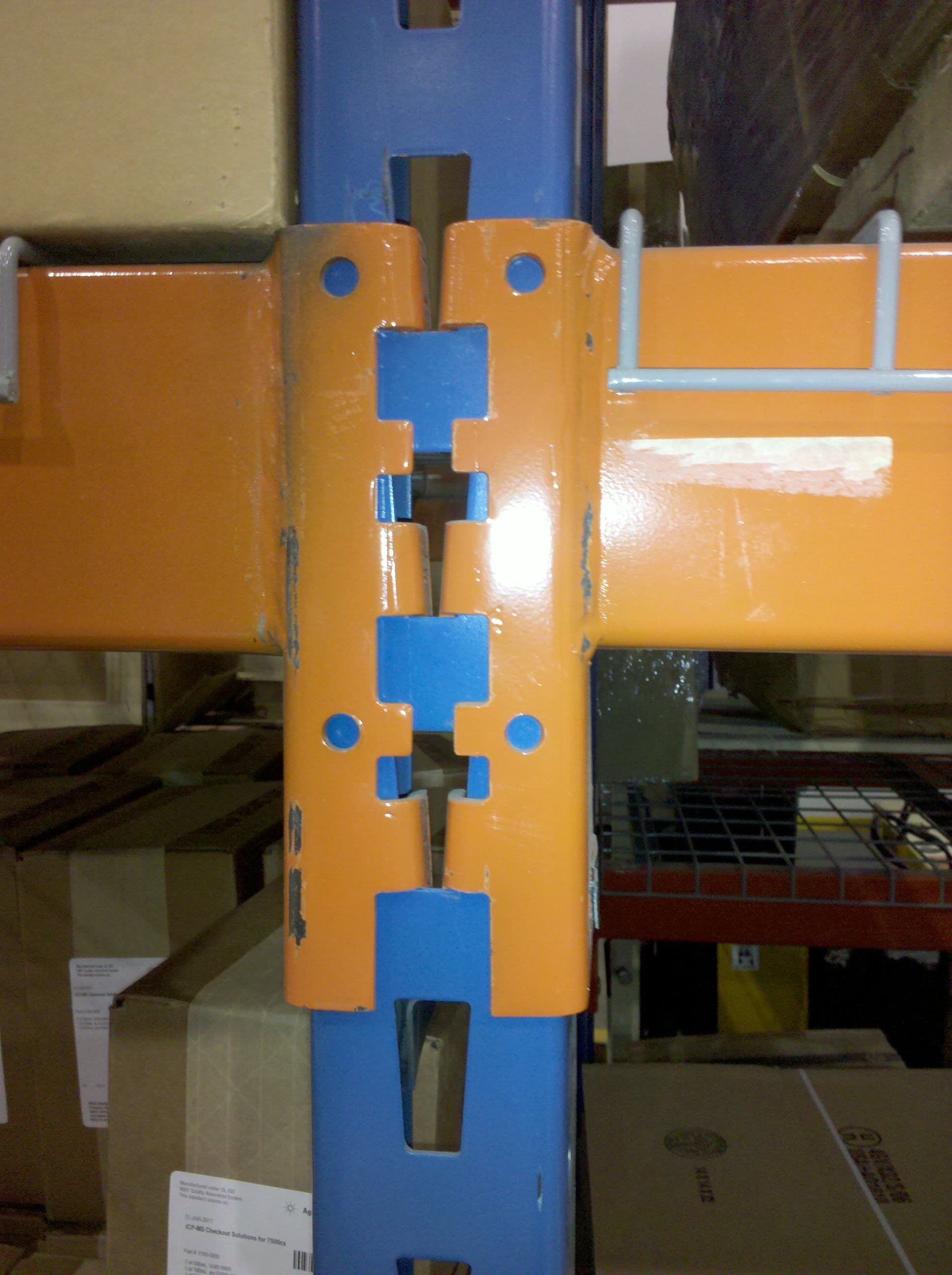

Keystone Style Racking

• Keystone Style 3″ vertical adjustability
• Horizontal and Diagonal bracing - 1 1/2″ square tube
• Spring Lock (not shown), locks beam to column for fast, easy beam adjustability
• Water-based enamels offer a durable , long lasting finish
• One Piece roll-formed beam available in a variety of sizes
• Structural C Channel beams available as an option
• Footplate - 3 1/4" x 5" standard

​

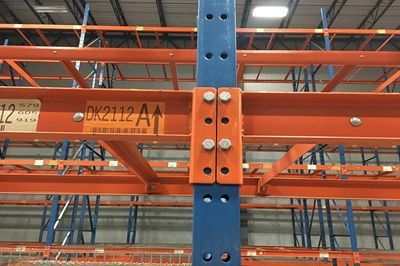

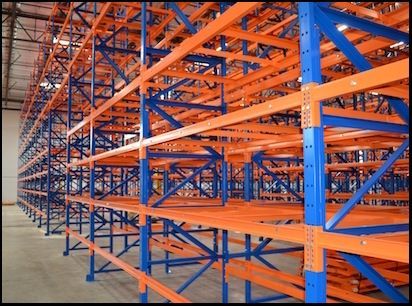

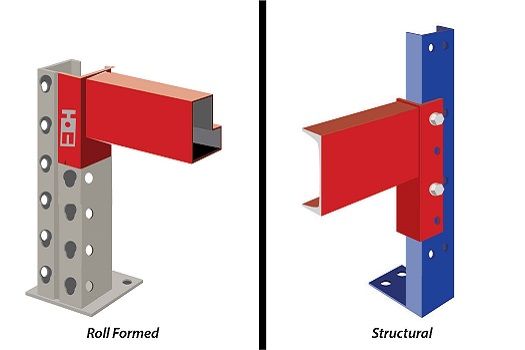

Structural Bolt-On Style Racking

• Upright Column constructed from Structural C Channel
• Available in C-3 and C-4 channel.
• Horizontal and Diagonal Bracing – Structural Angle
• Wise I connector adjustable on 1″ and 3″ vertical centers.
• Wise II connector adjustable on 2″ vertical centers
• Nut and Bolt Connections are Grade 5 American made only hardware
• Water based enamels offer a durable , long lasting finish
• Structural C Channel beam available in a variety of sizes
• One piece roll- formed beams available as an option
• Footplate 3 1/4″ x 5″ standard

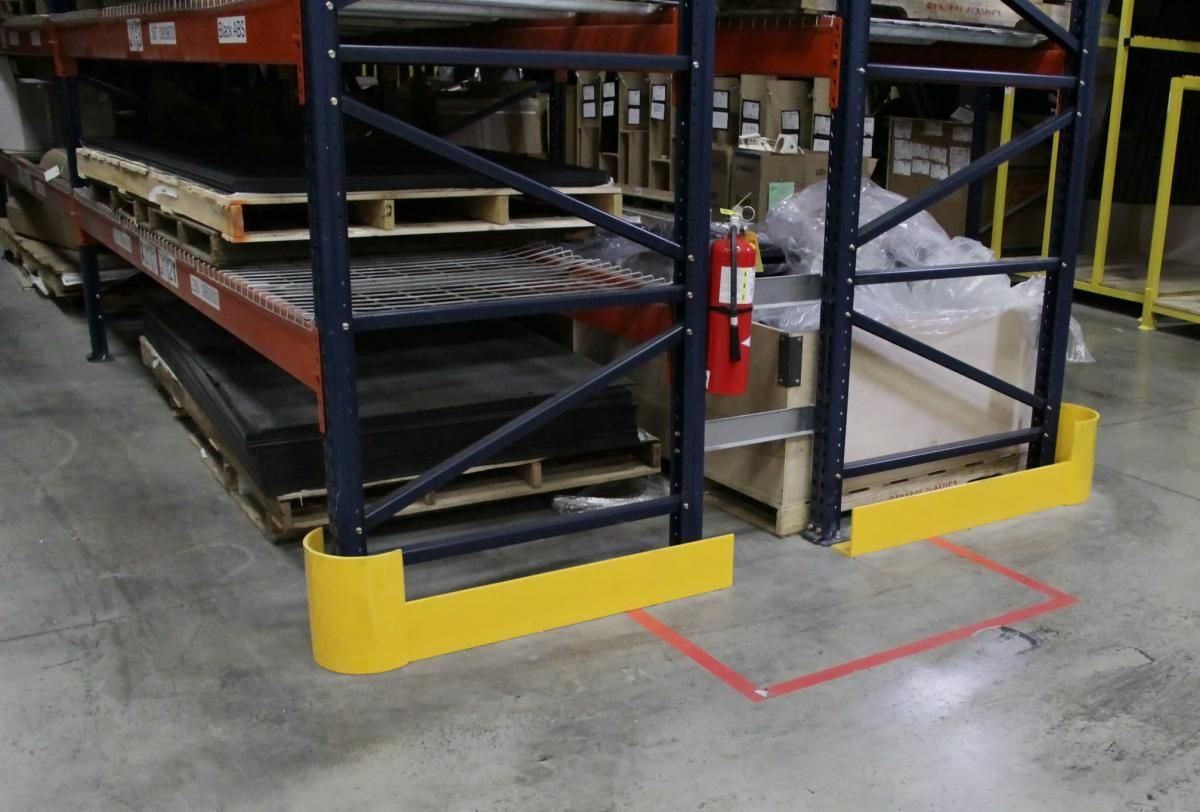

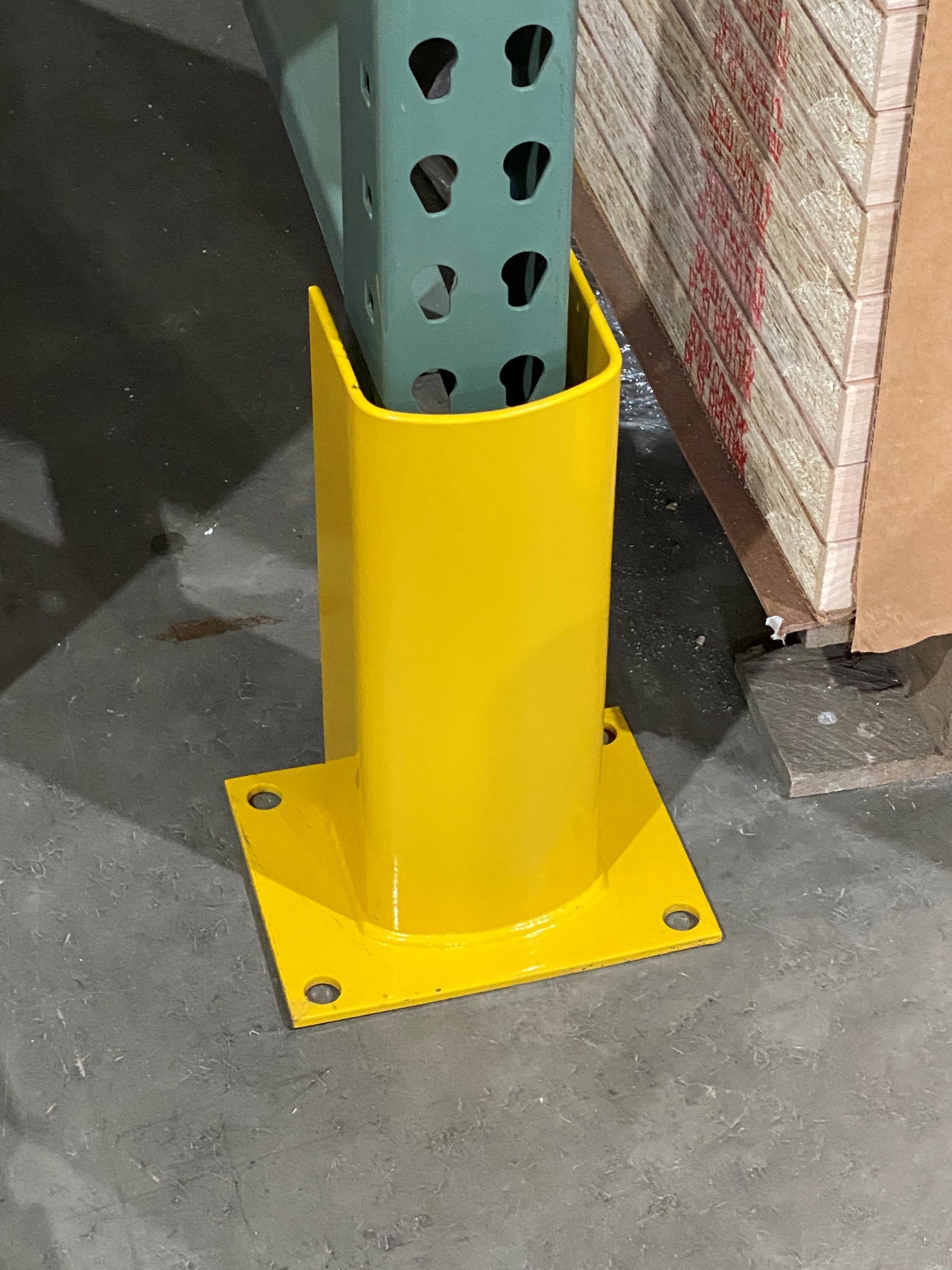

Upright Protectors

Provide extra support for your uprights with a wide variety of upright protectors.

Added impact resistance minimizes damage from forklifts and other moving vehicles in your plant.

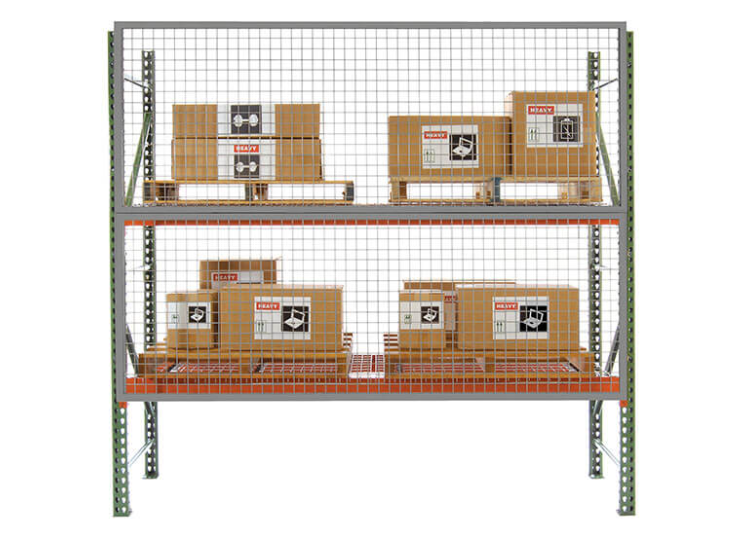

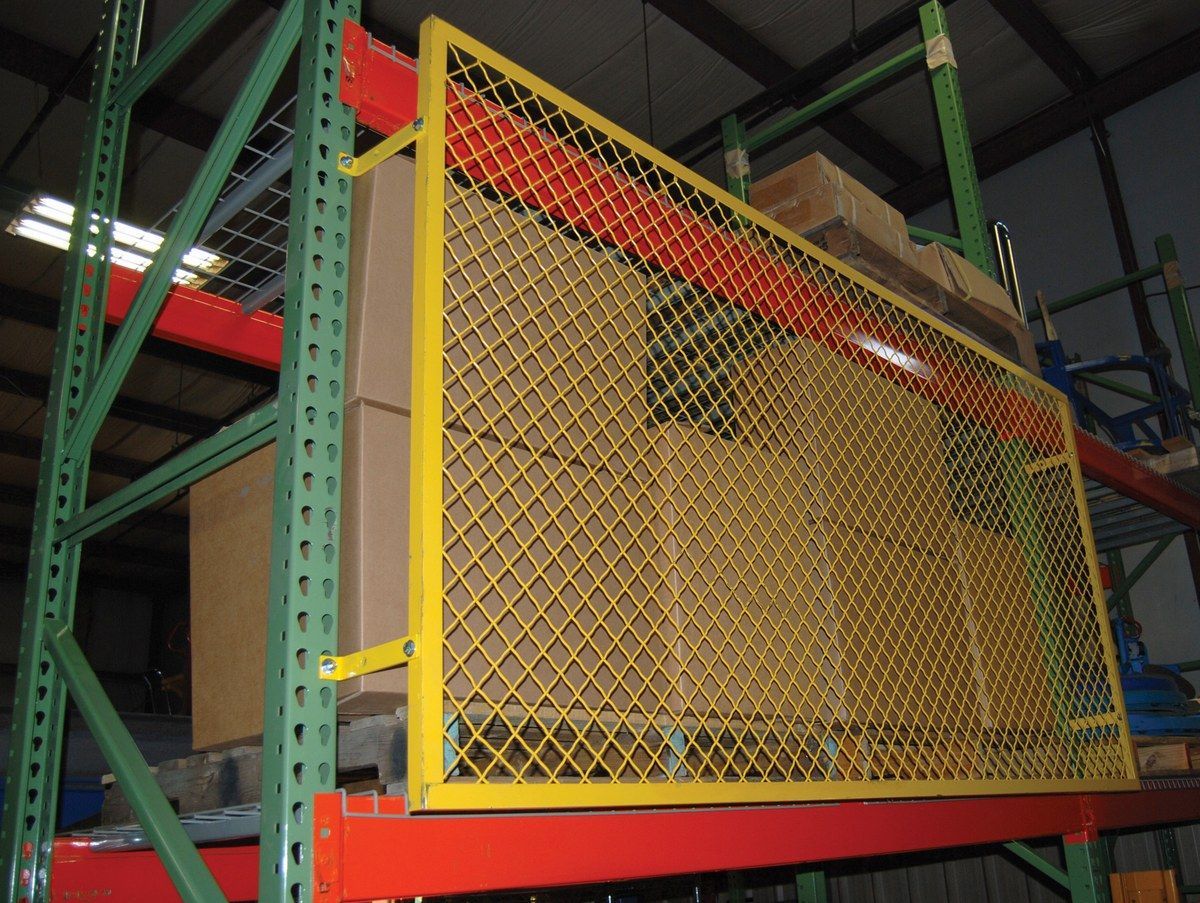

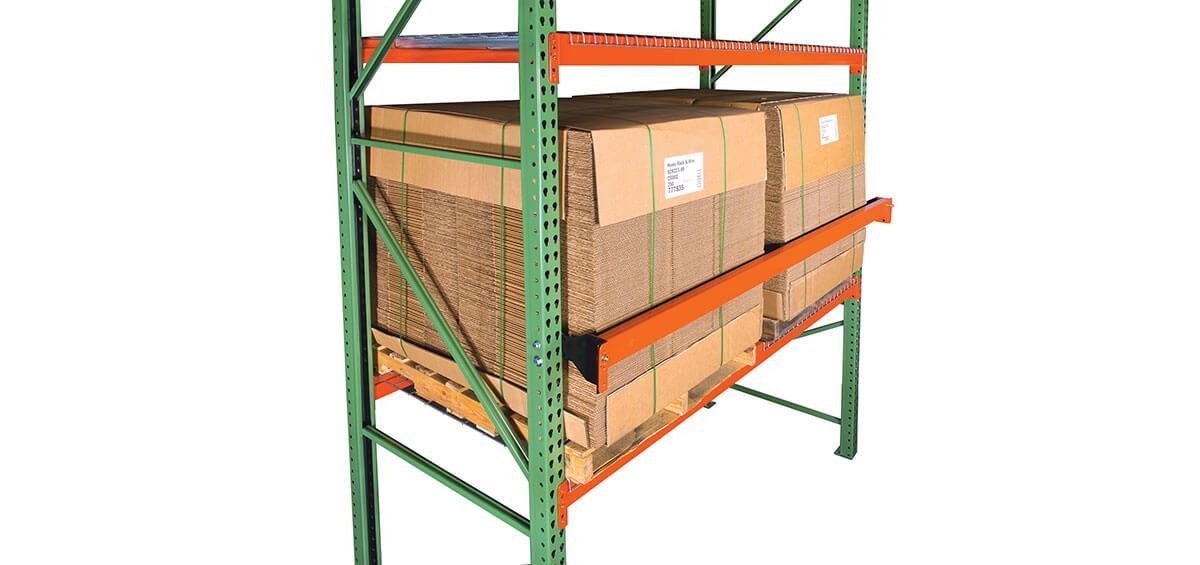

Rack Backing

Provide fall protection for your racking with a range of solutions

- Rack Backs

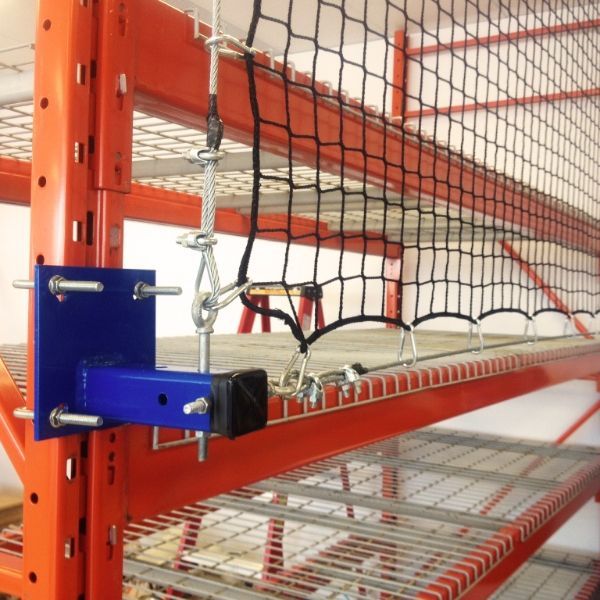

- Netting

- Pallet Stop Beams
